HIRAM INNOVATIONS

3D Mechanical Design Solutions That Drive Innovation Forward

Close-up of interconnected mechanical gears and parts from a machine or device.

Services

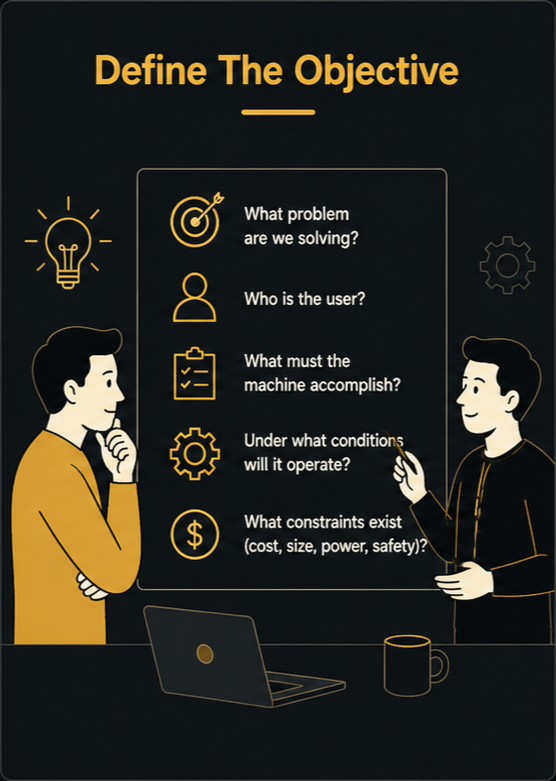

An infographic titled "Define The Objective" showing two men discussing key questions for defining a machine's purpose, including problem, user, goals, conditions, and constraints.

Before designing anything, we must clearly answer:

  • What problem are we solving?

  • Who is the user?

  • What must the machine accomplish?

  • Under what conditions will it operate?

  • What constraints exist (cost, size, power, safety)?

This prevents designing something impressive but too expensive or even worse… useless.

Define The Objective

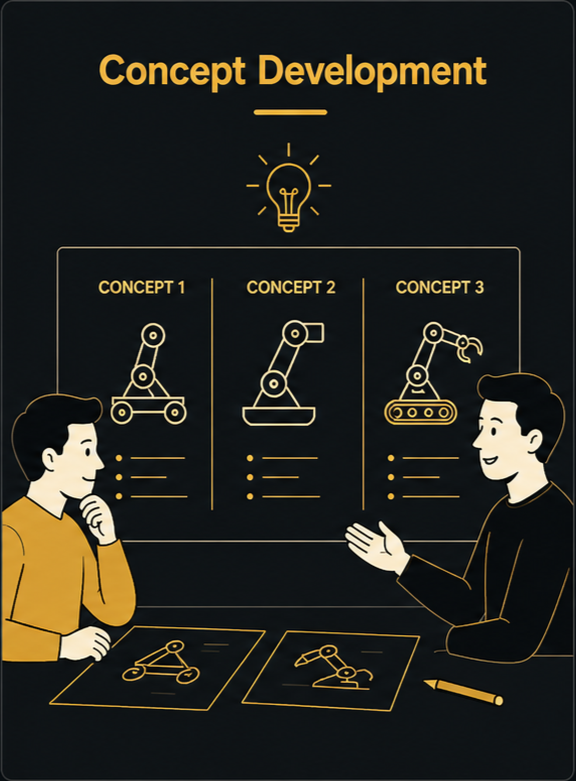

Two people discussing concept development for robotic arms, with diagrams of three different robot concepts and sketches of robotic mechanisms on tables.

Concept Development

Once the objective is clear, we begin:

  • Brainstorming multiple approaches

  • Sketching mechanisms

  • Comparing alternatives

  • Evaluating feasibility

At this stage, we’re not calculating details yet — We’re thinking in terms of principles and mechanisms:

  • Gears vs belts?

  • Electric motor vs hydraulic actuator?

  • Linkage vs cam mechanism?

Quantity of ideas matters early — refinement comes later.

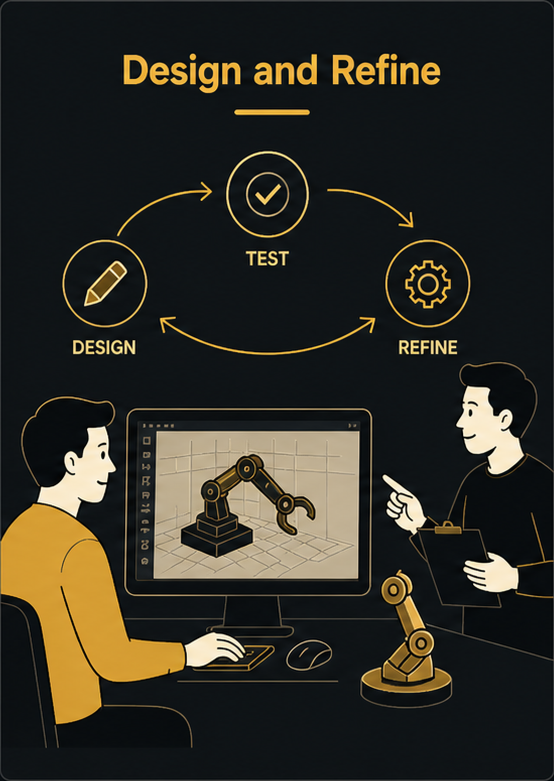

Illustration of a design process cycle with two people discussing a robotic arm, a computer monitor with the robotic arm diagram, and icons representing designing, testing, and refining.

At this stage, we :

  • Create complete CAD models of all components

  • Select materials based on strength, cost, and the environment the design will be in.

  • Choose standard parts (bearings, fasteners, motors, gears, etc.)

  • Specify tolerances and fits between components

  • Apply Geometric Dimensioning & Tolerancing (GD&T) to ensure proper assembly

  • Prepare technical drawings and a Bill of Materials (BOM)

  • Perform precise calculations for stresses, forces, and motion (If Required)

The goal is to have a fully defined, buildable design that meets all requirements.

Design and Refine

Why Hiram Innovations

Every company operates differently. Some handle all manufacturing in-house, while others outsource certain processes. Our goal is to remain nimble and adaptable, allowing us to support each customer in the way that best fits their operations—whether that means collaborating with their existing vendors or helping them identify the right partners to bring their ideas to life.

No matter the approach, we support our customers from start to finish. We tailor our level of involvement to meet each project’s needs, ensuring a smooth process and successful outcome for everyone involved.

Learn more
A Titan Truss Trailer carrying large wooden Trusses shaped like an upside-down V, with parts of the wood secured with yellow straps.

Contact Us

Interested in working together? Fill out some info and we will be in touch shortly. We can’t wait to hear from you!
